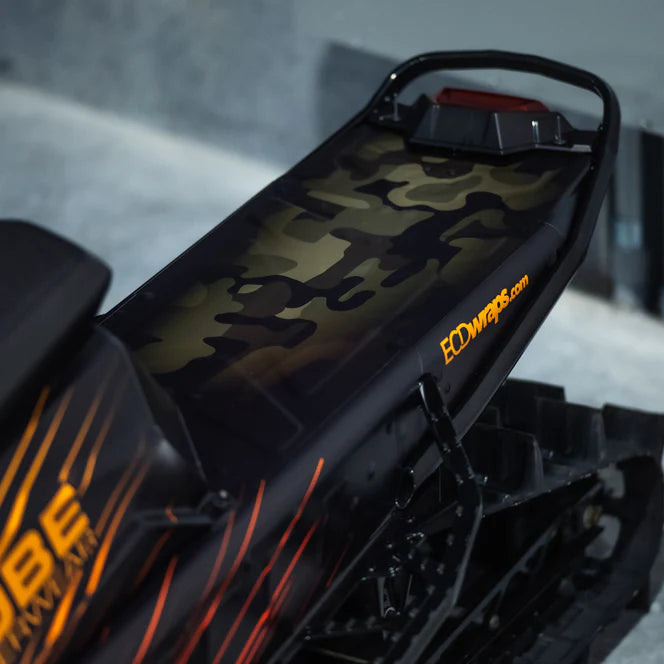

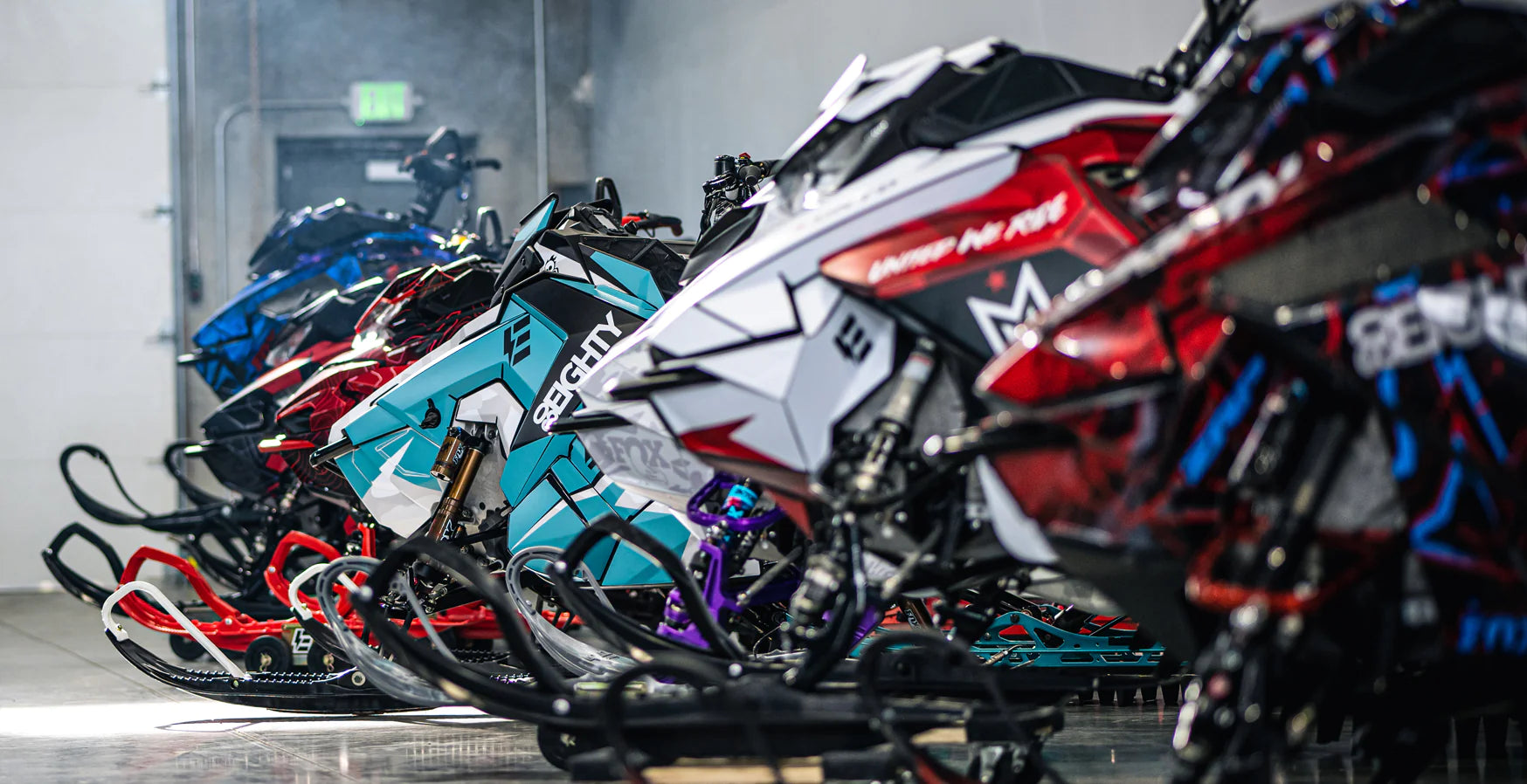

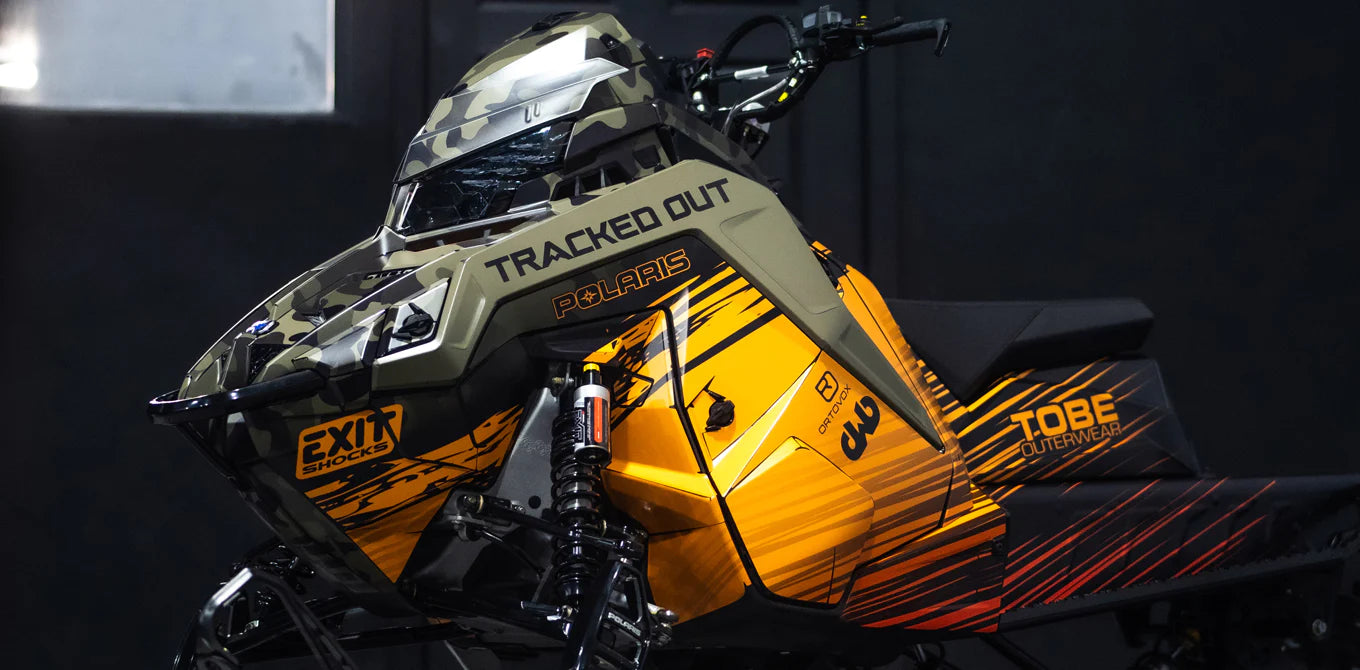

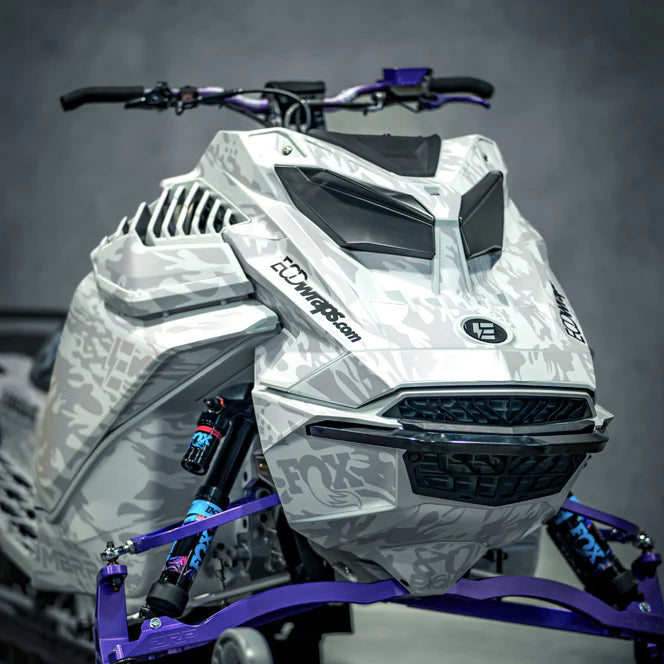

Substance Incorporated recommends the following end uses for Ultracurve X2: Bubble-free graphics for applications requiring the highest level of adhesion. Bubble-free decals and graphics for Snowmobiles and textured surfaces. Demanding industrial applications to polyethylene, polypropylene, and TPO. Permanent adhesion to smooth and rough textured plastics and metals.
|Material||100 micron Polymeric Calendered Vinyl|
|Adhesive||Clear Solvent-Based Pressure Sensitive Acrylic|
|Adhesive Thickness||0.056mm +/- 10%|
|Peel Adhesion||48N/25mm from Stainless Steel|
|Liner||170 gsm PE Coated Layflat Paper|
|Liner Release||32 grams/25mm|
|Dimensional Stability||0.8 mm|
|Application Temp.||0 C to 27 C recommended, test prior to specific application|
|Temperature Range||-40 C to 88 C|
|Shelf Life||6 months when stored at 21 C and 50% relative humidity|
|Print Compatability||Solvent, Eco-Solvent, Latex, UV, and Thermal Transfer Inks|
|Graphic Life||Outdoor durability up to 5 years (unprinted), permanent|
|Chemical Resistence||Resists mild acids, mild akalis, solvents, and salts. Excellent resistance to water, including immersion.|
Before applying an overlaminate, allow 24 hours for print to dry. Application surface must be free of dust, dirt, debris, grease, and other contaminants. We highly recommend cleaning the installation surface with isopropyl alcohol prior to application. Dry installation is recommended. After working out any bubbles in the film, mild heat may be used during installation to help X2 conform to irregular surfaces.
