Media Finish: Gloss Clear
Media Width: 54"
Roll Length: 45m (Full Roll)
Sale price£553.50

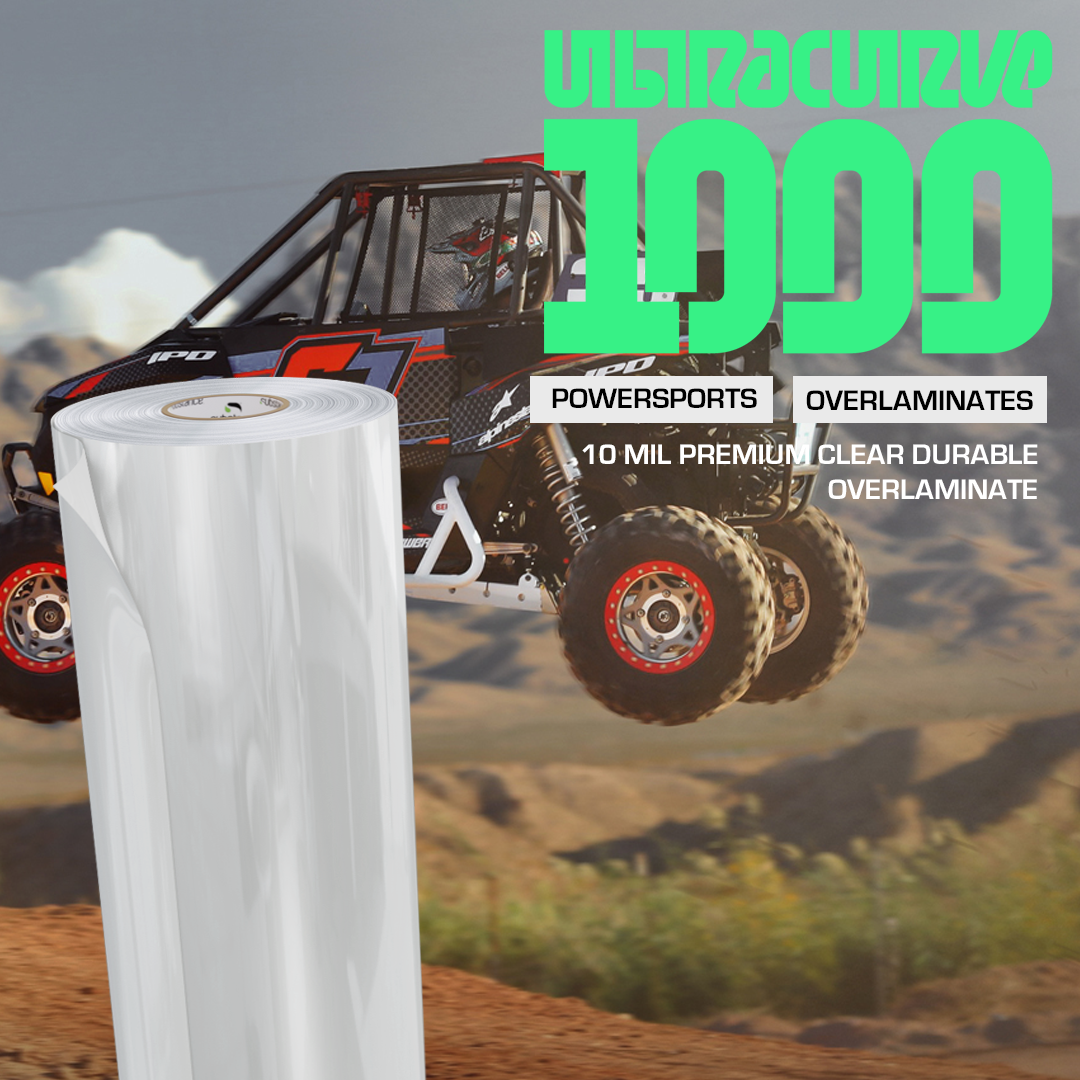

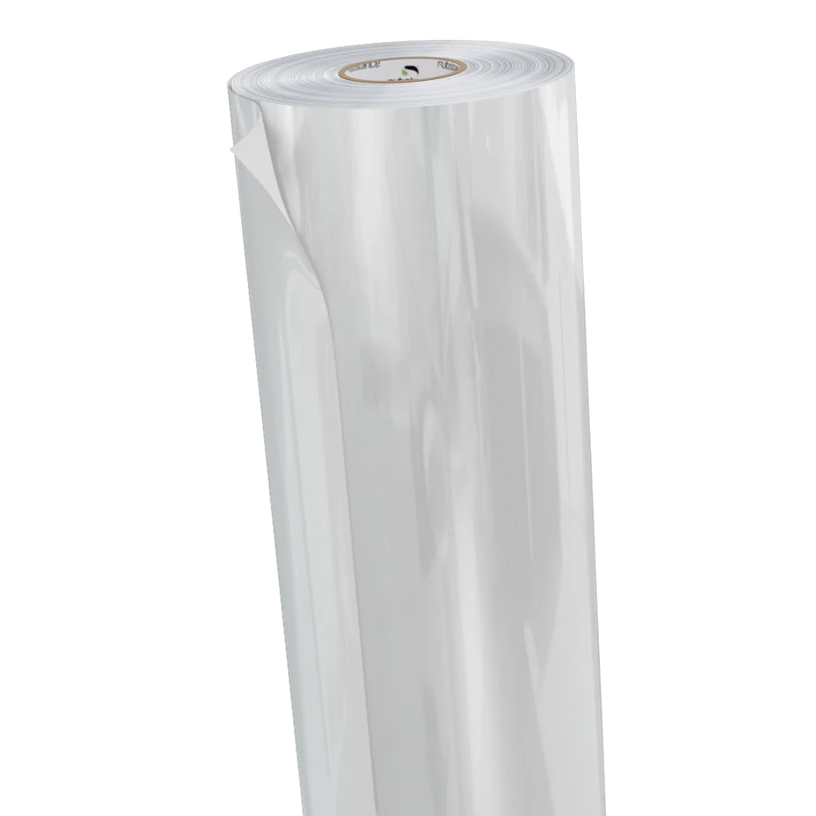

Ultracurve 1000 is a 254 micron flexible clear vinyl overlaminate, backed with an optically clear pressure-sensitive acrylic adhesive system, specifically engineered to adhere to print media. Ultracurve 1000 combined with Ultracurve 660LSE print media is the industry leading combination for premium ATV, kart, helmet and snowmobile graphics.



Recommended Uses

Substance Incorporated recommends the following end uses for Ultracurve 1000:
Decals and graphics for Motocross Bikes and ATVs.
Market leading graphics for Karts, Snowmobiles, and Side-X-Sides.
Helmet decals and wraps for MX, Football, Baseball, Lacrosse, Hockey, and Industrial. Demanding industrial applications that require additional impact/abrasion resistance.



Ultracurve 1000
Material 254 micron Engineered Calendered Vinyl

Colour Clear
Tensile Strength 233N/25mm

Adhesive Clear Solvent-Based Pressure Sensitive Acrylic
Adhesive Thickness 0.056mm +/- 10%
Peel Adhesion 24N/25mm from Stainless Steel
Liner 90LB Natural Brown PE Coated Layflat Paper

Liner Release 32 grams/25mm

Dimensional Stability 0.8 mm
Application Temp. 5°C to 27°C recommended, test prior to specific application
Temperature Range -53°C to 104°C
Shelf Life 6 months when stored at 21°C and 50% relative humidity
Print Compatability N/A
Graphic Life Outdoor durability up to 3 years, permanent
Chemical Resistence Resists mild acids, mild akalis, solvents, and salts. Excellent resistance to water, including immersion.



Before applying an overlaminate, allow 24-48 hours for print to dry. Application surface must be free of dust, dirt, debris, grease, and other contaminants. We highly recommend cleaning the installation surface with isopropyl alcohol prior to application. Mild heat may be used during installation to help Ultracurve 1000 conform to irregular surfaces.
