Description

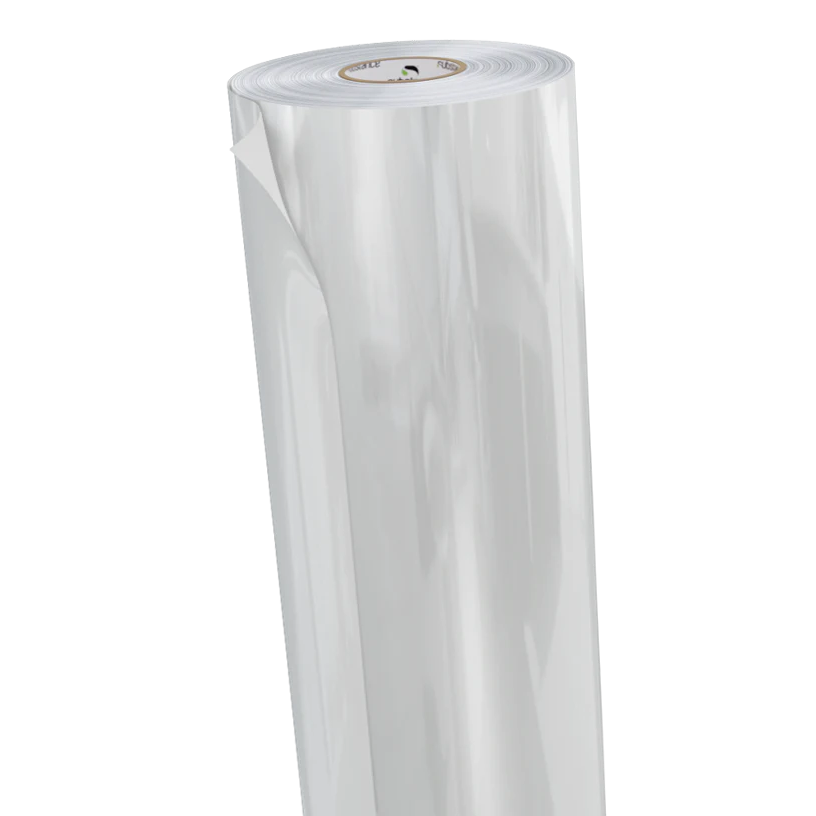

Ultracurve 1500 is a 381 micron flexible clear vinyl overlaminate, backed with an optically clear pressure-sensitive acrylic adhesive system, specifically engineered to adhere to print media. Ultracurve 1500 combined with Ultracurve 660LSE print media is the industry leading combination for premium motocross graphics and decals.
Recommended Uses

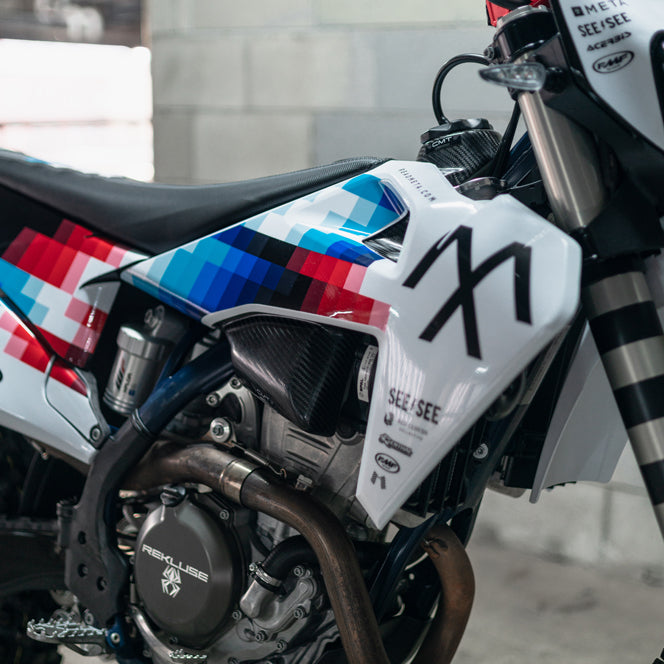

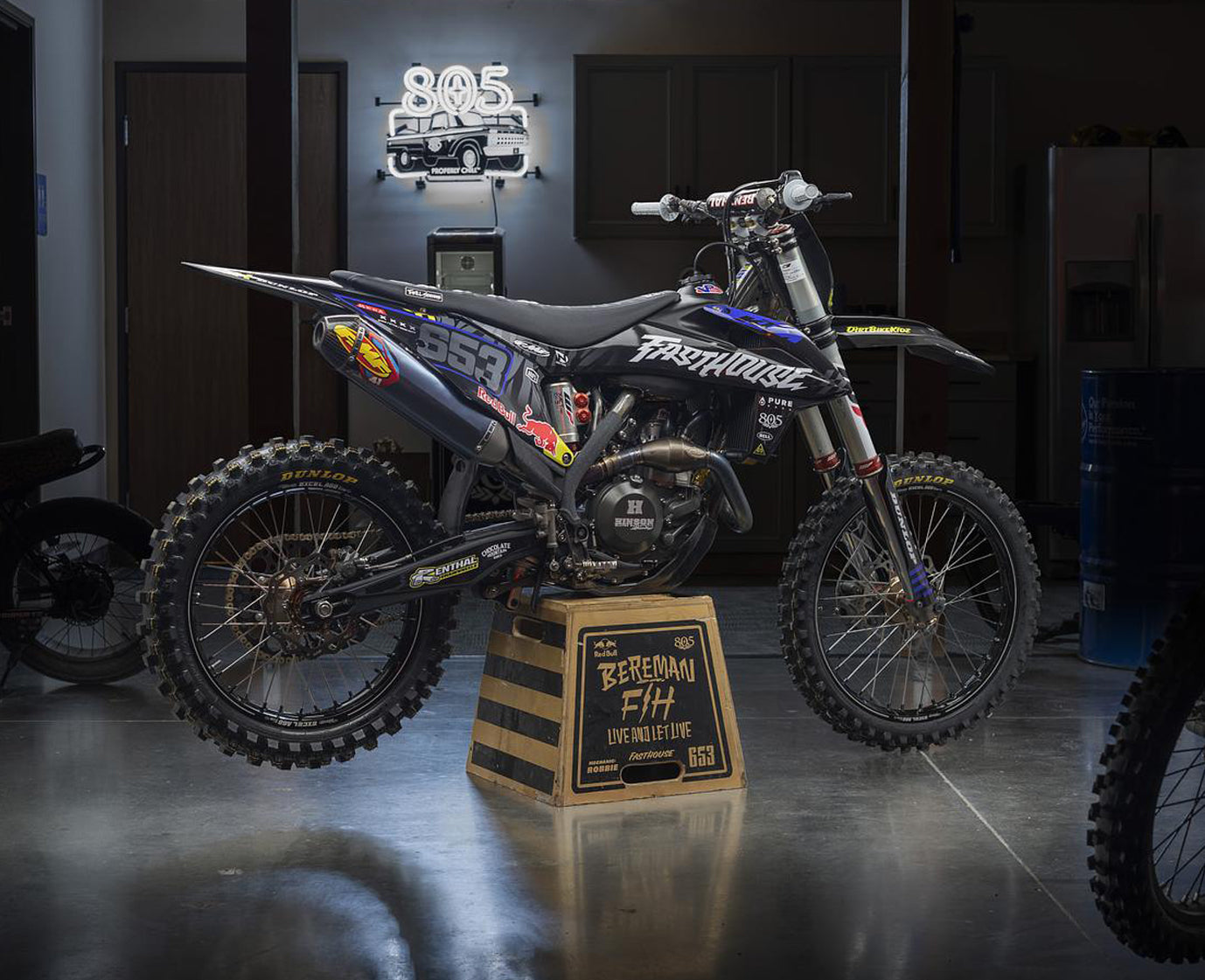

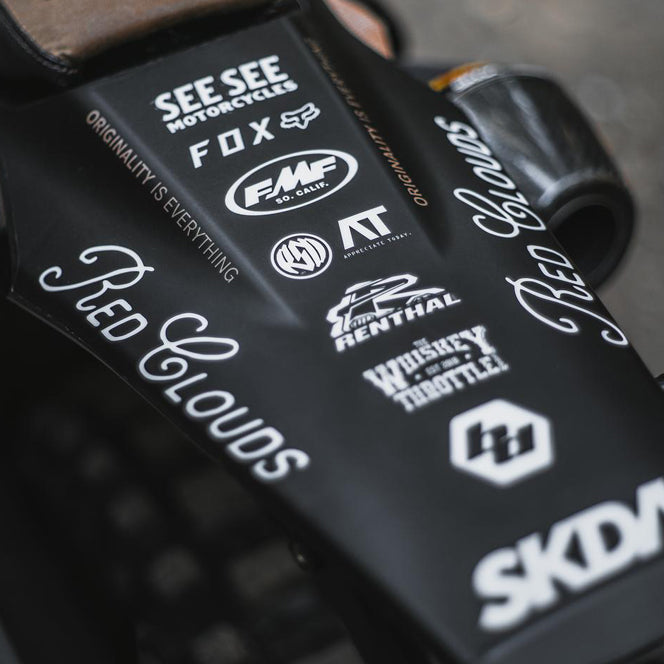

Substance Incorporated recommends the following end uses for Ultracurve 1500S: Market leading graphics for Motocross Bikes and ATVs. Decals and Graphics for Karts, Snowmobiles, and Side-X-Sides. Helmet decals and wraps for MX, Football, Baseball, Lacrosse, Hockey, and Industrial. Demanding industrial applications that require additional impact/abrasion resistance.
Performance
| Ultracurve 1500 | |
| Material | 381 micron Engineered Calendered Vinyl |
| Colour | Clear |
| Tensile Strength | 336N/25mm |
| Adhesive | Clear Solvent-Based Pressure Sensitive Acrylic |
| Adhesive Thickness | 0.056mm +/- 10% |
| Peel Adhesion | 24N/25mm from Stainless Steel |
| Liner | 90LB Natural Brown PE Coated Layflat Paper |
| Liner Release | 32 grams/25mm |
| Dimensional Stability | 0.8 mm |
| Application Temp. | 5°C to 27°C recommended, test prior to specific application |
| Temperature Range | -53°C to 104°C |
| Shelf Life | 6 months when stored at 21°C and 50% relative humidity |
| Print Compatability | N/A |
| Graphic Life | Outdoor durability up to 3 years, permanent |
| Chemical Resistence | Resists mild acids, mild akalis, solvents, and salts. Excellent resistance to water, including immersion. |
Installation
Before applying an overlaminate, allow 24-48 hours for print to dry. Application surface must be free of dust, dirt, debris, grease, and other contaminants. We highly recommend cleaning the installation surface with isopropyl alcohol prior to application. Mild heat may be used during installation to help Ultracurve 1500 conform to irregular surfaces.
