Description
Recommended Uses

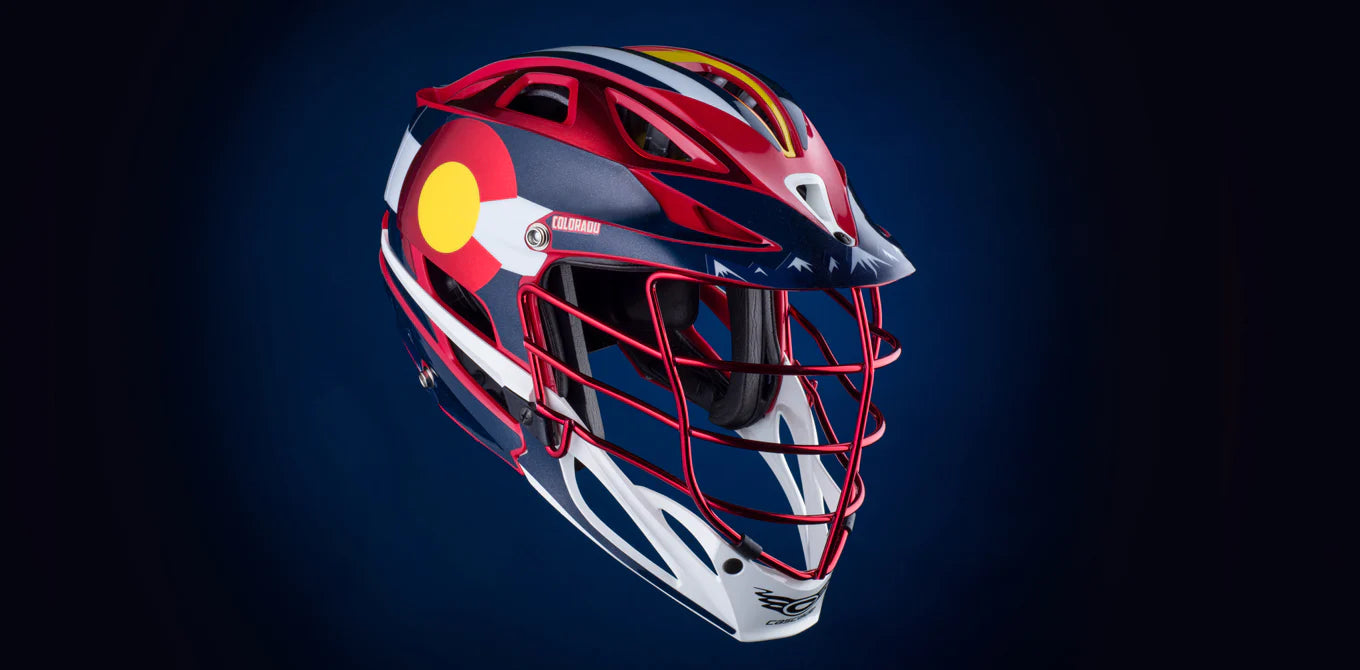

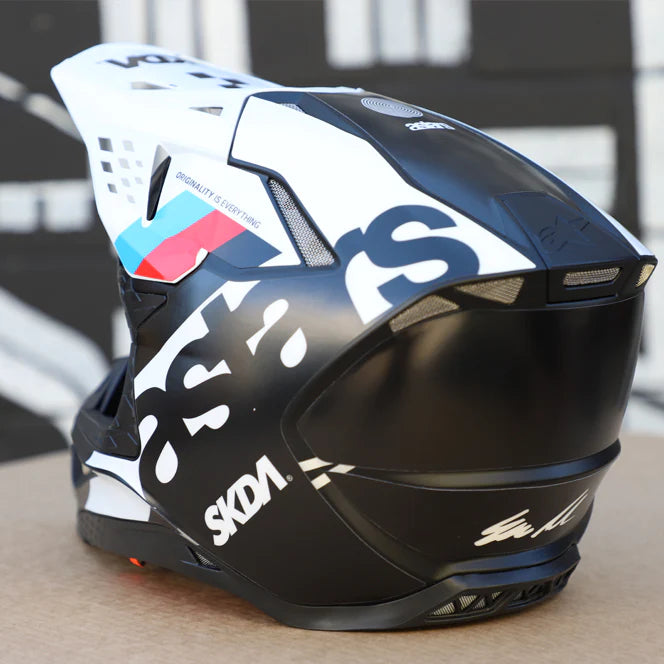

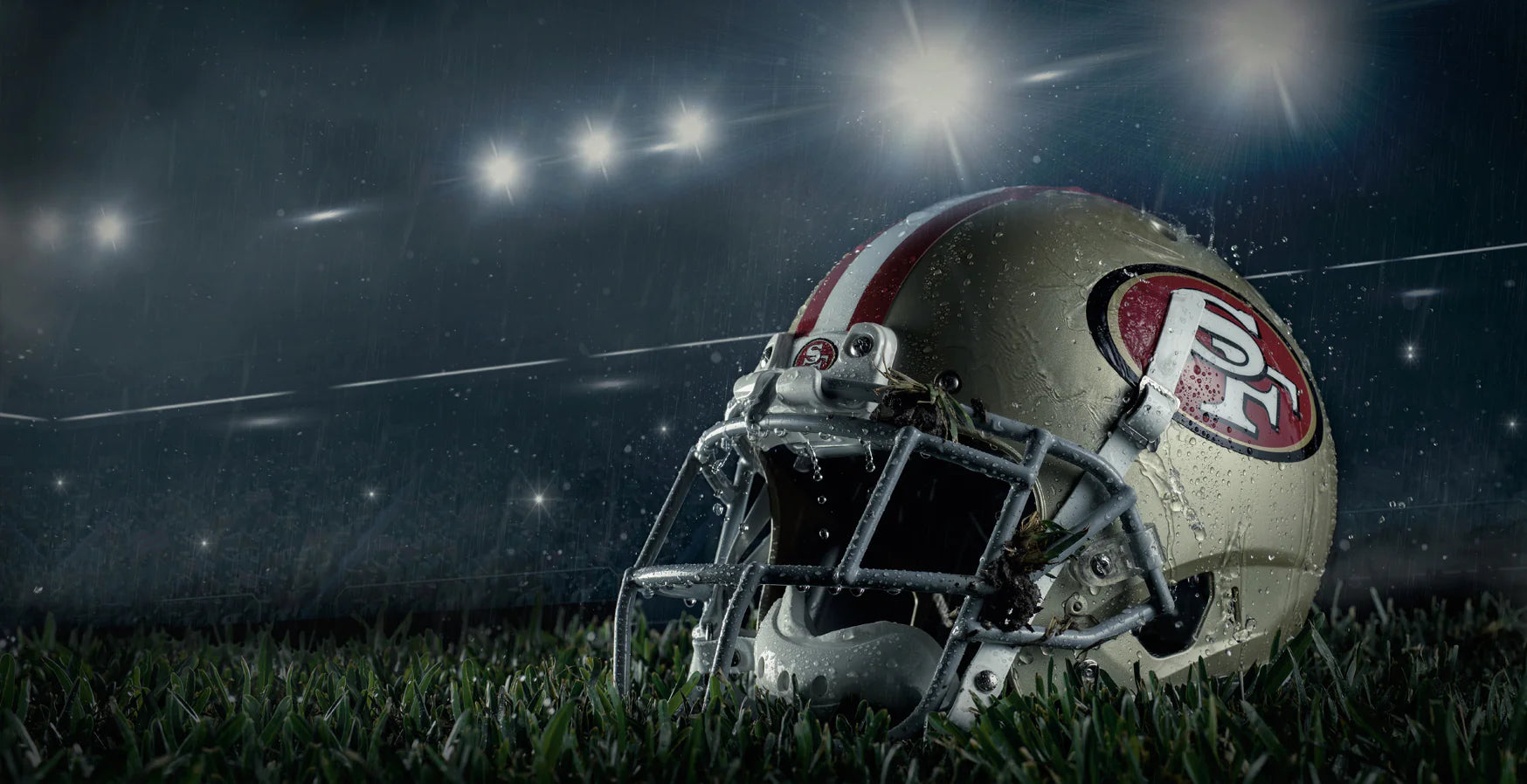

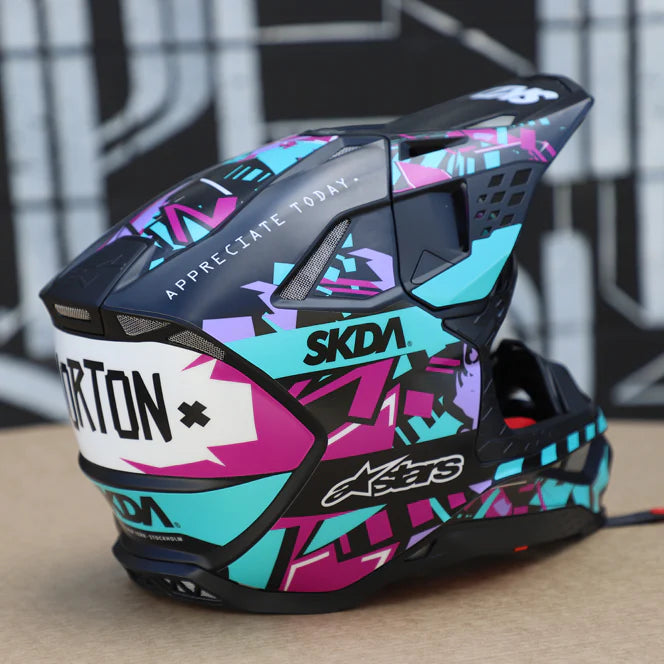

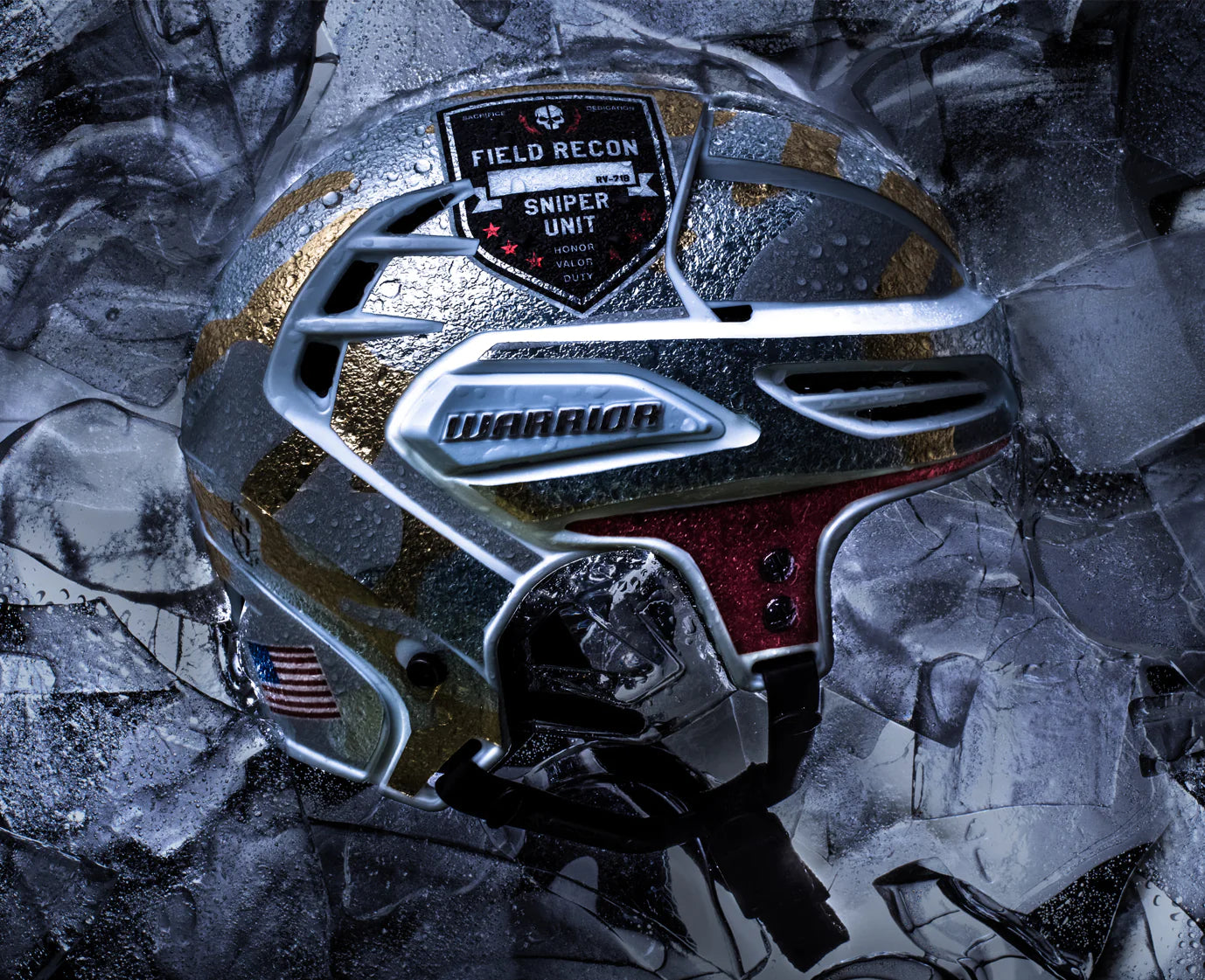

Substance Incorporated recommends the following end uses for Ultracurve H1: Decals for football, baseball, lacrosse, hockey, motorsports, and industrial helmets. Market leading decals for sport helmets that require strong adhesion. Decals applied to HSE/LSE plastics that require clean long-term removability. Applications that require aggressive adhesion with low shrinkage characteristics.
Performance
| Ultracurve H1 | |

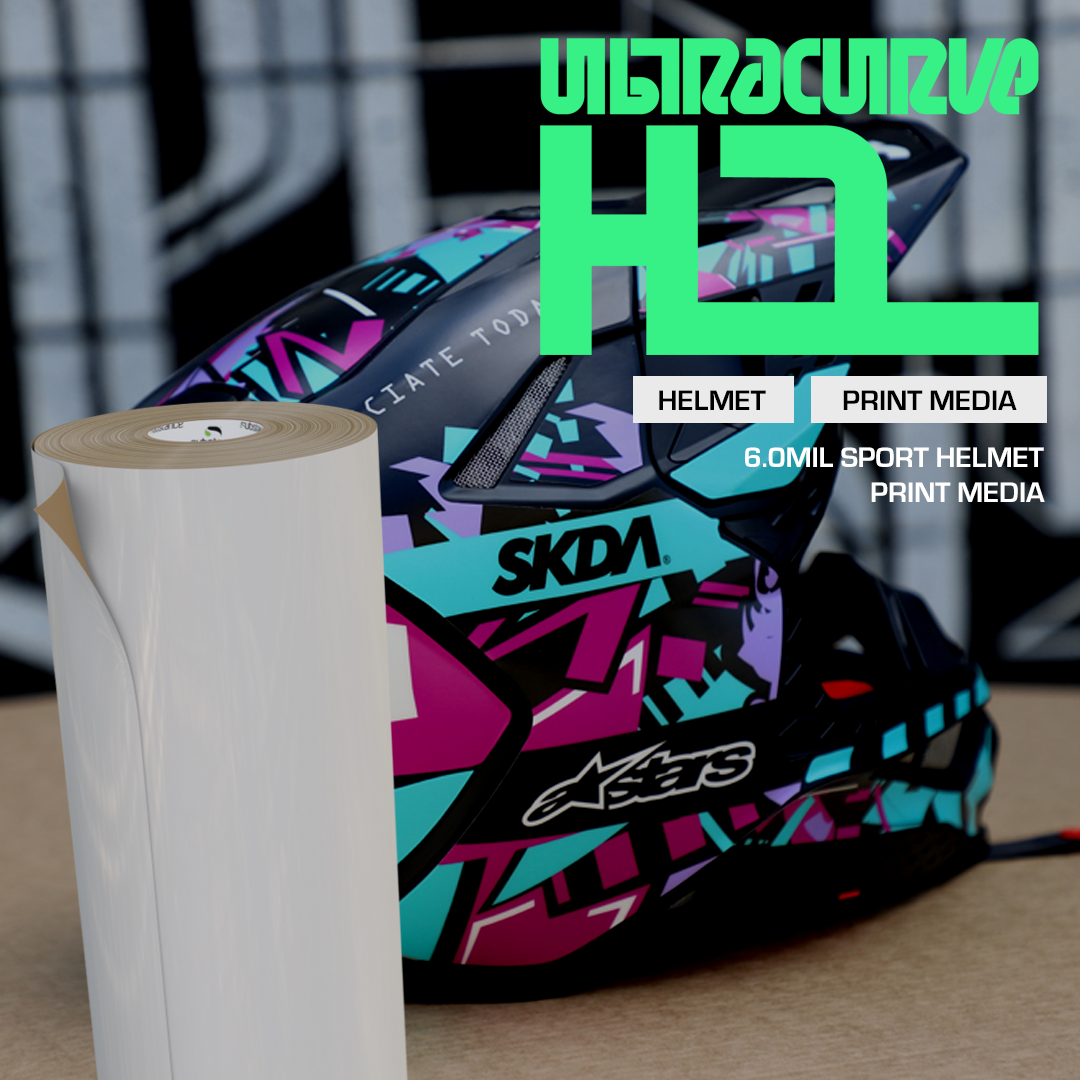

| Material | 153 micron Polymeric Calendered Vinyl |
| Colour | Opaque White |
| Tensile Strength | 68N/25mm |
| Adhesive | Clear Solvent-Based Pressure Sensitive Acrylic |
| Adhesive Thickness | 0.056mm +/- 10% |
| Peel Adhesion | 27N/25mm from Stainless Steel |
| Liner | 90LB Natural Brown PE Coated Layflat Paper |
| Liner Release | 32 grams/25mm |
| Dimensional Stability | 0.5 mm |
| Application Temp. | 0°C to 27°C recommended, test prior to specific application |
| Temperature Range | -53°C to 104°C |
| Shelf Life | 2 years when stored at 21°C and 50% relative humidity |
| Print Compatability | Solvent, Eco-Solvent, Latex, UV, and Thermal Transfer Inks |
| Graphic Life | Outdoor durability up to 7 years (unprinted), permanent |
| Chemical Resistence | Resists mild acids, mild akalis, solvents, and salts. Excellent resistance to water, including immersion. |
Installation
Before applying an overlaminate, allow 24 hours for print to dry. Application surface must be free of dust, dirt, debris, grease, and other contaminants. We highly recommend cleaning the installation surface with isopropyl alcohol prior to application. Dry installation is recommended. Please test any application fluid prior to use. Mild heat may be used during installation to help Ultracurve H1 conform to irregular surfaces.
