ULTRACURVE 1500 Orion Gold Ltd Edition


Media Finish: Gloss Clear
Media Width: 54"
Roll Length: 22.5m
Price:
Sale price£466.43

Description

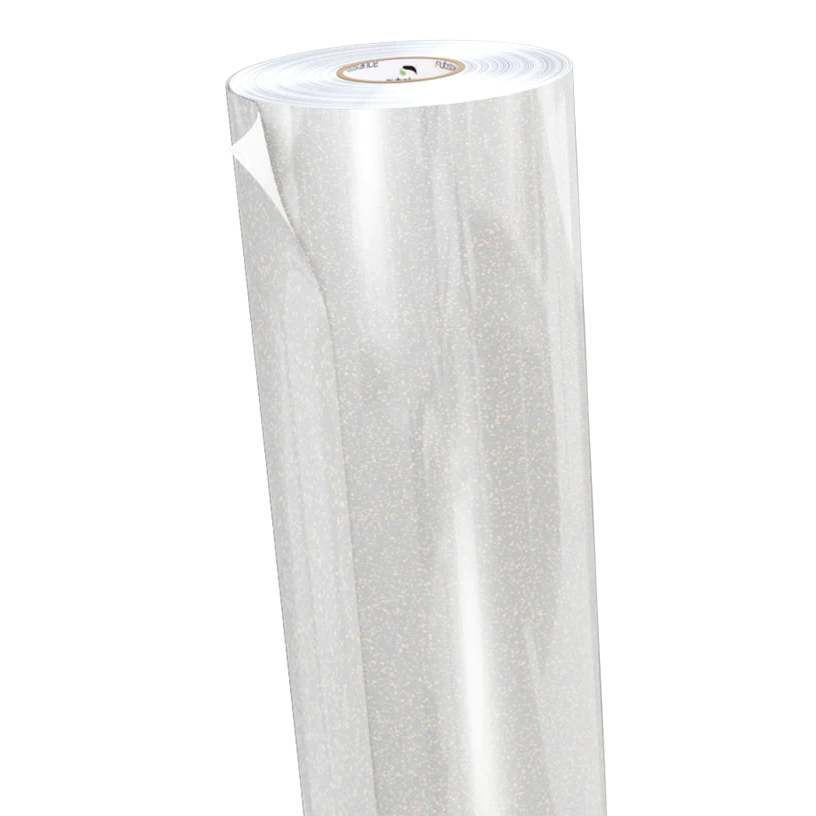

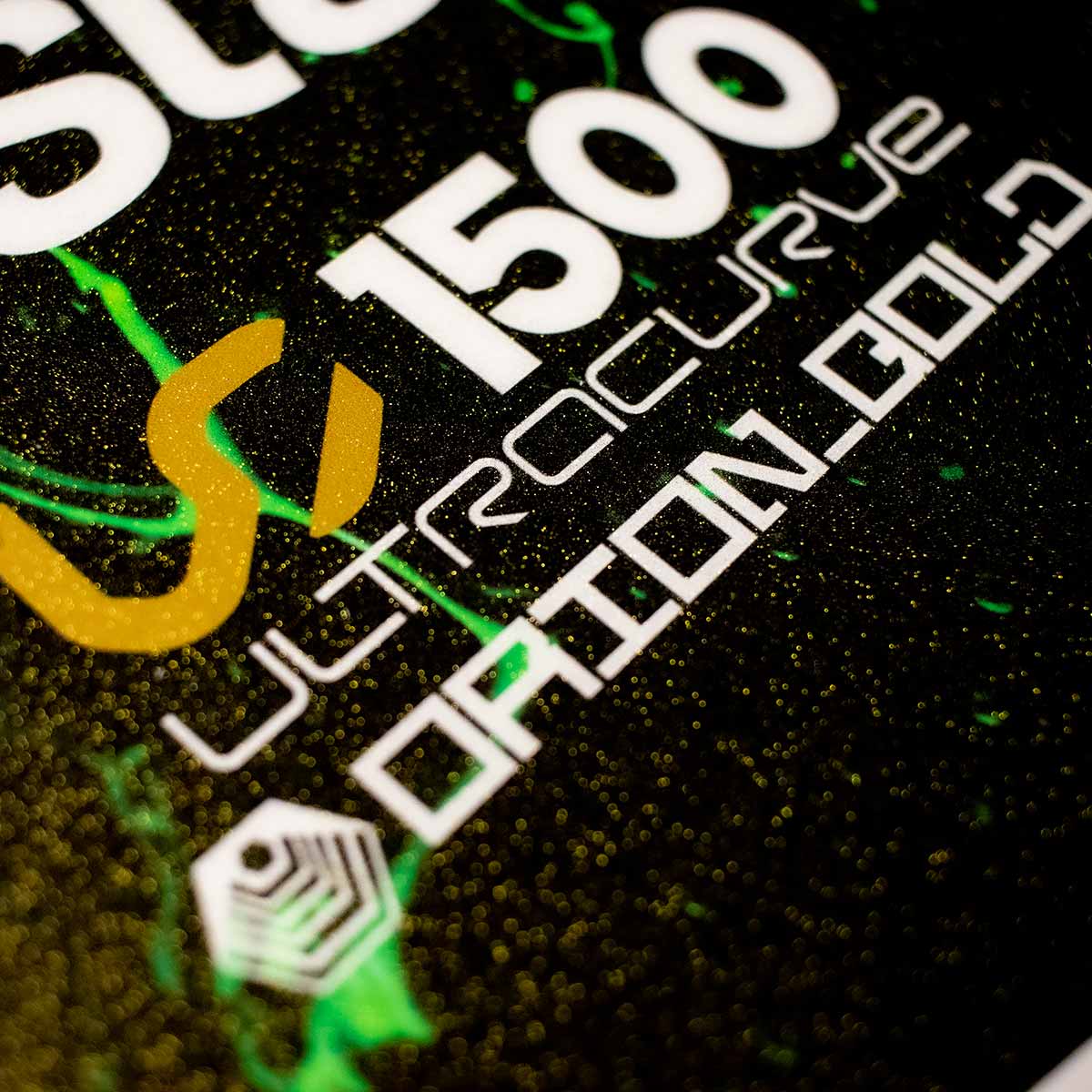

Ultracurve 1500 Orion Gold Ltd Edition is a 381 micron flexible clear, gold metallic flake vinyl overlaminate, backed with an optically clear pressure-sensitive acrylic adhesive system, specifically engineered to adhere to print media. Ultracurve 1500 combined with Ultracurve 660LSE print media is the industry leading combination for premium motocross graphics and decals.



As seen on Eli Tomac’s Kawasaki Monster Energy Racing Team KX450F at the Monster Energy Cup 2019



Recommended Uses

Substance Incorporated recommends the following end uses for Ultracurve 1500: Market leading graphics for Motocross Bikes and ATVs.
Decals and Graphics for Karts, Snowmobiles, and Side-X-Sides.
Helmet decals and wraps for MX, Football, Baseball, Lacrosse, Hockey, and Industrial. Demanding industrial applications that require additional impact/abrasion resistance.



Performance

Ultracurve 1500
Material 381 micron Engineered Calendered Vinyl

Colour Clear
Tensile Strength 336N/25mm

Adhesive Clear Solvent-Based Pressure Sensitive Acrylic
Adhesive Thickness 0.056mm +/- 10%
Peel Adhesion 24N/25mm from Stainless Steel
Liner 90LB Natural Brown PE Coated Layflat Paper

Liner Release 32 grams/25mm

Dimensional Stability 0.8 mm
Application Temp. 5°C to 27°C recommended, test prior to specific application
Temperature Range -53°C to 104°C
Shelf Life 6 months when stored at 21°C and 50% relative humidity
Print Compatability N/A
Graphic Life Outdoor durability up to 3 years, permanent
Chemical Resistence Resists mild acids, mild akalis, solvents, and salts. Excellent resistance to water, including immersion.



Installation

Before applying an overlaminate, allow 24-48 hours for print to dry. Application surface must be free of dust, dirt, debris, grease, and other contaminants. We highly recommend cleaning the installation surface with isopropyl alcohol prior to application. Mild heat may be used during installation to help Ultracurve 1500 conform to irregular surfaces.
